CIP Kitchen System for Dairy Industry
PRODUCT OVERVIEW
The GEMAK Skid Mounted CIP (Clean-in-Place) Kitchen System is a fully automated hygienic
cleaning solution engineered for dairy and food processing facilities. The system is designed to
perform efficient and repeatable cleaning cycles for process equipment, pipelines, storage
tanks, pasteurizers, homogenizers, separators, filling machines, valve manifolds, and associated
processing lines without dismantling the equipment.
The CIP Kitchen integrates chemical preparation, solution storage, heating, circulation, recovery,
and process automation into a compact skid-mounted unit, ensuring optimum cleaning
performance while minimizing water, chemical, steam, and energy consumption.
The system complies with hygienic design principles and supports validated cleaning procedures
required by modern
Working Principle
The CIP Kitchen prepares and circulates cleaning solutions through process equipment at
controlled:
• Flow Rate
• Temperature
• Chemical Concentration
• Contact Time
The cleaning cycle is automatically executed through PLC-controlled recipes and consists of:
1. Pre-Rinse
2. Alkaline (Caustic) Cleaning
3. Intermediate Water Rinse
4. Acid Cleaning
5. Final Water Rinse
6. Sanitization (Optional)
The return solution is monitored for conductivity, temperature, and flow before being recovered
or discharged as pe

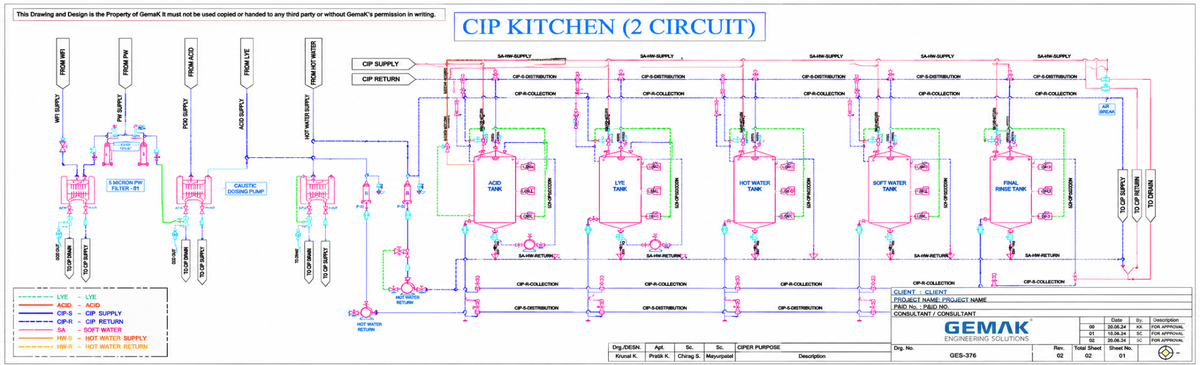

System Configuration
4 Tank Configuration
1. Caustic Tank
• Storage of alkaline cleaning solution.
• SS316L construction.
• Equipped with level transmitter, temperature sensor, spray device, and outlet valve.
2. Acid Tank
• Storage of acid cleaning solution.
• Used for mineral scale and milk stone removal.
• Conductivity-based concentration control.
3. Hot Water Tank
• Heated water storage for rinse and sanitization cycles.
• Integrated temperature control system.
4. Recovery Tank
• Collection and reuse of final rinse water.
• Reduces water con
Heating Skid Assembly
The heating skid consists of:
• Plate Heat Exchanger (PHE)
• Steam Control Valve
• Condensate Removal System
• Temperature Transmitter
• Circulation Pumps
• Safety Valves
• Instrumentation & Controls
The heating skid maintains accurate cleaning temperatures throughout the CIP cycle and
ensures rapid heat transfer
Technical Specifications
Parameter Specification
System Type Skid Mounted Automatic CIP Kitchen
Number of Tanks 4 Nos./5 Nos.
Tank Capacity 500 L – 10,000 L Each
Tank Design Vertical Cylindrical Tank with Flat Top & Lower Front Outlet
Material of Construction SS304 / SS316L
Internal Surface Finish Ra ≤ 0.8 μm
Design Temperature Up to 95°C
Operating Temperature 20°C – 90°C
Design Pressure Atmospheric
Parameter Specification
Flow Rate 1KLPH – 30KLPH
Heating Medium Steam
Heat Exchanger Type Plate Heat Exchanger
Automation Level Fully Automatic
Control System PLC + HMI/ PID Based
Utility Requirement Steam, Water, Compressed Air, Electrical Power
CIP Supply Pressure 2.0 – 5.0 Bar
Instrumentation Flow, Temperature, Level & Conductivity Monitoring
Design Features
Hygienic Construction
• Dead-leg-free piping design
• Crevice-free sanitary welds
• Orbital welded process lines
• EHEDG/FDA c
Energy Efficient Operation
• Heat recovery provision
• Water recovery system
• Optimised chemical consumption
• Reduced steam utilization
Modular Skid Design
• Factory assembled and tested
• Reduced installation time
• Easy transportation and commissioning
Fully Automated Cleaning
• Recipe-based operation
• Automatic sequence control
• Alarm and interlock management
• Real-time process monitoring
Typical Applications
• Milk Reception Systems
• Raw Milk Silos
• Pasteurizers
• Homogenizers
• Cream Separators
• Balance Tanks
• Process Pipelines
• Cheese Processing Lines
• Yogurt Processing Plants
• Ice Cream Manufacturing Facilities
• Beverage Processing Plant
Advantages
✔ Consistent Cleaning Results
✔ Reduced Production Downtime
✔ Lower Water Consumption
✔ Reduced Chemical Usage
✔ Energy Efficient Operation
✔ Improved Product Safety
✔ Extended Equipment Life
✔ Compliance with Dairy Hygiene Standards
✔ Reduced Manual Intervention
✔ Complete Process Traceability
